Mooring Solutions
High strength solutions, for your peace of mind
Our Mooring Solutions include a Standard Mooring Line, DL-100 HMPE Mooring Line and the 8 Strand PPE Braid to choose from. These products include a variety of features each, ranging from UV resistant, abrasion resistance, larger sizes on request and more.
Custom lines and setups available upon request.

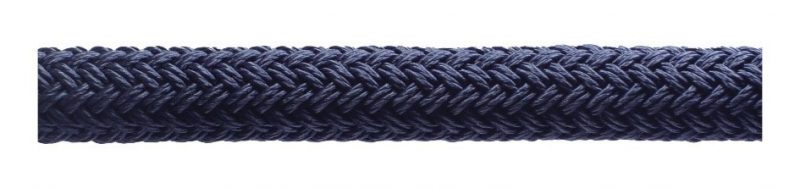

DL-100 HMPE Mooring Line
- Core: HMPE
- Cover: HMPE, PS, Technora, Custom Blend
- Colours Available: Depending on Fibers used
- Diameters: 10mm – 34mm
- Features: Custom blended cover with Light weight HMPE core. Easy to handle, High Strength. Easy for crew members to handle. Larger Sizes on Request.
- Application: Mooring
- Important: Nylon Loops are used for Shock Absorption
Break Load Table
| Diameter (mm) | Break Load (kg) |
|---|---|
| 20 | 21200 |
| 24 | 30000 |
| 28 | 38800 |
| 32 | 55000 |
| 34 | 64500 |
Mooring Line – Standard
- Core: Nylon
- Cover: Polyester
- Colours Available: Blue, Navy, Grey, Red
- Diameters: 10mm – 30mm
- Features: High UV resistant Polyester Cover with stretchy Nylon core.
- Application: Mooring
Break Load Table
| Diameter (mm) | Reel Size (m) | kg / Reel | Break Load (kg) |
|---|---|---|---|
| 10 | 220 | 14.3 | 2550 |
| 12 | 220 | 20.9 | 3500 |
| 16 | 220 | 31.9 | 6420 |
| 18 | 220 | 40 | 8100 |
| 25 | 220 | 78 | 15600 |
| 28 | 220 | 98 | 19500 |
| 30 | 220 | 113 | 22380 |
8 Strand PPE Braid
- Range: 32 – 100mm
- Reel Size: 220m
- Colours: White, Silver, Turquoise, Brick. More Colors available on request
- Features: Excellent abrasion resistance, UV resistance, Lightweight, Floats, ISO 1346:2012, ISO 9554:2010
- Construction: 8 Strand Braid
- Application: Fishing, Agriculture, Aquaculture, Long-lining, Safety nets, Fishing nets, Lifting, mooring, Truck tie downs, Concrete re-enforcement, General purpose industrial use
Break Load Table
| Diameter (mm) | Reel Size (m) | kg / Reel | Break Load (kg) |
|---|---|---|---|
| 32 | 220 | 101 | 17500 |
| 36 | 220 | 130 | 22080 |
| 38 | 220 | 144 | 24350 |
| 40 | 220 | 158 | 26860 |
| 44 | 220 | 194 | 31780 |
| 48 | 220 | 230 | 37180 |
| 50 | 220 | 248 | 40000 |
| 56 | 220 | 312 | 49380 |
| 60 | 220 | 360 | 56680 |
| 64 | 220 | 407 | 64100 |
| 68 | 220 | 460 | 72062 |
| 72 | 220 | 515 | 80225 |
| 76 | 220 | 577 | 88000 |
| 80 | 220 | 640 | 99050 |
| 82 | 220 | 672 | 102000 |
| 84 | 220 | 705 | 106000 |
| 88 | 220 | 774 | 112000 |
| 92 | 220 | 846 | 122415 |
| 96 | 220 | 921 | 133200 |
| 100 | 220 | 999 | 144600 |
