COMMERCIAL MARITIME
_

Commercial Maritime

The Maritime industry is a vast industry with many types of applications and rope needs.

The most common fibers used in the marine industry are Nylon, Polyester, PPE and HMPE, depending on the application and requirements.

In the Commercial Maritime industry, safety, productivity, cost and longevity are some of the most important factors to take into consideration before deciding on a product. We can give you the best advice for your specific needs.

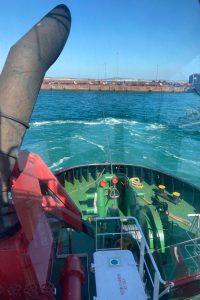

TUGBOAT-HMPE-TOW-LINE-TESTING-TRANSNET-SALDANHA

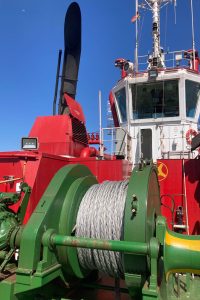

TUGBOAT-HMPE-TOW-LINE-TRANSNET
TUGBOAT-HMPE-TOW-LINE-WITH-HEAVY-DUTY-HMPE-COVER-ON-EYE

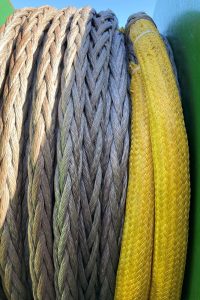

TUG-HMPE-TOW-LINE-TRANSNET
Fiber Rope Solutions
Fiber Rope Solutions
Fiber Rope Solutions

Super 8 – HMPE

  • Core: HMPE 8 strand
  • Cover: N/A
  • Diameters: 32mm – 64mm
  • Features: As strong as steel but 80% lighter, UV resistance, High Abrasion Resistance, Low stretch, Low recoil, Floats on Water
  • Application: High load/Low stretch, Mooring
Dockline Standard NYLON CORE test3 800x188
Dockline Standard NYLON CORE test3 800x188
Break Load Table
Diameter (mm) Reel Size (m) kg / Reel Break Load (kg)
32 100 49 62000
36 100 62 78000
40 100 76 95000
44 100 92 114000
48 100 110 136000
52 100 130 159000
56 100 150 183000
60 100 175 200000
64 100 200 2300000

HMPE 12

  • Core: HMPE 12 strand
  • Cover: N/A
  • Diameters: 1mm – 60mm
  • Features: As strong as steel but 80% lighter, UV resistance, High Abrasion Resistance, Low stretch, Low recoil, Floats on Water
  • Application: Mooring, Salvage, Sea Anchors, Lift, Tugboat Tow Line
HMPE 12
HMPE 12
Break Load Table
Diameter (mm) Spliced Break Load (t) Linear Break Load (t)
1 0.28 0.31
1.5 0.42 0.47
1.75 0.55 0.61
2 0.85 0.94
3 1.3 1.4
4 2.2 2.4
5 3.1 3.4
6 4.3 4.8
7 5.2 5.8
8 6.6 7.3
9 8.3 9.2
10 9.7 10.8
12 15.3 17
14 17.9 19.9
16 21.2 23.5
18 31.3 34.7
19 34.9 38.7
20 40.8 45.3
22 47 52.2
24 55.2 61.3
26 65.3 72.5
28 76 84.4
30 82.5 91.6
32 84.6 93.9
34 95 105.5
36 106.8 118.5
40 118 130
42 131 145
44 143 158
46 168 174
48 181 186
50 191 200
52 201 212
54 215 223
56 230 238
58 248 255
60 268 297
_

Happy Clients

What Our Clients Say?

HMPE 12 Tugboat Tow Ropes

It is my pleasure to recommend Fiber Rope Solutions for the supply of specialized ropes. The company supplied TNPA Saldanha with four towing ropes. The correct ropes were supplied on time with no delays.

The company went above and beyond the work scope with technical advice and assistance after the ropes were delivered.

Marine Technical Manager
Saldanha

Nylon 12

  • Core: Nylon 12 strand
  • Cover: N/A
  • Diameters: 8mm – 56mm
  • Application: Dynamic Loading
Nylon12
Nylon12
Break Load Table
Diameter (mm) Reel Size (m) kg / Reel Break Load (kg)
8 220 9.3 1485
10 220 14.3 2288
12 220 20.6 3300
14 220 28 4510
16 220 36.5 5830
18 220 46 7370
20 220 57 9130
22 220 69 11000
24 220 82 13200
26 220 97 15290
28 220 112 17380
30 220 129 19690
32 220 146 22000
36 220 184 27280
38 220 206 30140
40 220 228 33000
44 220 276 39380
48 220 330 46200
50 220 357 49940
56 220 448 61600

Polyester 12

  • Core: Polyester 12 strand
  • Diameters: 8mm – 60mm
  • Application: Dynamic Loading
POLYESTER polyester 12 800x188
POLYESTER polyester 12 800x188
Break Load Table
Diameter (mm) Reel Size (m) kg / Reel Break Load (kg)
8 220 11.6 1595
10 220 18 2519
12 220 26 3795
14 220 35.3 4840
16 220 46 6600
18 220 58.3 7700
20 220 72 8140
22 220 87 11880
24 220 104 13750
26 220 122 15675
28 220 141 18150
30 220 162 20570
32 220 184 22880
36 220 233 28270

3 Strand PPE Rope

  • Range: 6 – 46mm
  • Reel Size: 220m
  • Colours: White, Silver, Turquoise, Brick. More Colors available on request
  • Construction: 4 Strand Cable Lay
  • Features: Excellent abrasion resistance, UV resistance, Lightweight, Floats ISO 1346:2012, ISO 9554:2010
  • Applications: Fishing, Agriculture, Aquaculture, Long-lining, Safety nets, Fishing nets, Lifting, mooring, Truck tie downs, Concrete re-enforcement, General purpose industrial use
3 Strand Polysteel 800x188
3 Strand Polysteel 800x188
Break Load Table
Diameter (mm) Reel Size (m) kg / Reel Break Load (kg)
6 220 4 770
8 220 7 1360
10 220 10 2035
12 220 14.5 2900
14 220 20 3905
16 220 25.5 4910
18 220 33 6300
20 220 40 7600
22 220 49 8900
24 220 57 10490
26 220 68 12320
28 220 78 13900
30 220 90 16000
32 220 101 17500
36 220 130 22080
38 220 144 24350
40 220 158 26860
42 220 176 29613
44 220 193 31780
46 220 211 34734

4 Strand PPE Rope

  • Range: 6 – 46mm
  • Reel Size: 220m
  • Colours: White, Silver, Turquoise, Brick. More Colors available on request
  • Construction: 4 Strand Cable Lay
  • Features: Excellent abrasion resistance, UV resistance, Lightweight, Floats ISO 1346:2012, ISO 9554:2010
  • Applications: Fishing, Agriculture, Aquaculture, Long-lining, Safety nets, Fishing nets, Lifting, mooring, Truck tie downs, Concrete re-enforcement, General purpose industrial use
POLYSTEEL 4 strand polysteel 800x188
POLYSTEEL 4 strand polysteel 800x188
Break Load Table
Diameter (mm) Reel Size (m) kg / Reel Break Load (kg)
6 220 4 770
8 220 7 1360
10 220 10 2035
12 220 14.5 2900
14 220 20 3905
16 220 25.5 4910
18 220 33 6300
20 220 40 7600
22 220 49 8900
24 220 57 10490
26 220 68 12320
28 220 78 13900
30 220 90 16000
32 220 101 17500
36 220 130 22080
38 220 144 24350
40 220 158 26860
42 220 176 29613
44 220 193 31780
46 220 211 34734

8 Strand PPE Braid

  • Range: 32 – 100mm
  • Reel Size: 220m
  • Colours: White, Silver, Turquoise, Brick. More Colors available on request
  • Construction: 8 Strand Braid
  • Features: Excellent abrasion resistance, UV resistance, Lightweight, Floats, ISO 1346:2012, ISO 9554:2010
  • Applications: Fishing, Agriculture, Aquaculture, Long-lining, Safety nets, Fishing nets, Lifting, mooring, Truck tie downs, Concrete re-enforcement, General purpose industrial use
POLYSTEEL 8 strand polysteel 800x188
POLYSTEEL 8 strand polysteel 800x188
Break Load Table
Diameter (mm) Reel Size (m) kg / Reel Break Load (kg)
32 220 101 17500
36 220 130 22080
38 220 144 24350
40 220 158 26860
44 220 194 31780
48 220 230 37180
50 220 248 40000
56 220 312 49380
60 220 360 56680
64 220 407 64100
68 220 460 72062
72 220 515 80225
76 220 577 88000
80 220 640 99050
82 220 672 102000
84 220 705 106000
88 220 774 112000
92 220 846 122415
96 220 921 133200
100 220 999 144600

12 Strand PPE Braid

  • Range: 18 – 60mm
  • Reel Size: 220m
  • Colours: White, Silver, Turquoise, Brick. More Colors available on request
  • Construction: 12 Strand Braid
  • Features: Excellent abrasion resistance, UV resistance, Lightweight, Floats, ISO 1346:2012, ISO 9554:2010
  • Applications: Fishing, Agriculture, Aquaculture, Long-lining, Safety nets, Fishing nets, Lifting, mooring, Truck tie downs, Concrete re-enforcement, General purpose industrial use
12 strand
12 strand
Break Load Table
Diameter (mm) Reel Size (m) kg / Reel Break Load (kg)
18 220 33 6930
20 220 40 8360
22 220 49 9790
24 220 57 11539
26 220 68 13552
28 220 78 15290
30 220 90 17600
32 220 101 19250
36 220 130 24288
38 220 144 26785
40 220 158 29546
44 220 194 34958
48 220 230 40898
50 220 248 44000
56 220 312 54318
60 220 360 62384

3 Strand Custom

  • Range: 8 – 46mm
  • Reel Size: 220m
  • Colours: White, Silver, Turquoise, Brick. More Colors available on request
  • Construction: 4 strand cable lay
  • Features: Excellent abrasion resistance, UV resistant, Strength not affected by water, does not shrink, Sinking rope
  • Applications: Mooring lines, Anchor warps, Towing lines, Frame net ropes, Foot Ropes, Head line
3 Strand Polyrene new 800x188
3 Strand Polyrene new 800x188
Break Load Table
Diameter (mm) Reel Size (m) kg / Reel Break Load (kg)
8 220 9.3 1400
10 220 14.3 2100
12 220 20.6 3000
14 220 28 4100
16 220 36.5 5200
18 220 46 6600
20 220 57 8100
22 220 69 9500
24 220 82 11400
26 220 97 13200
28 220 112 15000
30 220 129 17000
32 220 146 19000
36 220 184 23560
38 220 206 26000
40 220 228 28500
42 220 252 33075
44 220 276 36300
46 220 302 39670

4 Strand Custom

  • Range: 8 – 46mm
  • Reel Size: 220m
  • Colours: White, Silver, Turquoise, Brick. More Colors available on request
  • Construction: 4 strand cable lay
  • Features: Excellent abrasion resistance, UV resistant, Strength not affected by water, does not shrink, Sinking rope
  • Applications: Mooring lines, Anchor warps, Towing lines, Frame net ropes, Foot Ropes, Head line
POLYRENE 4 strand polyrene 800x188
POLYRENE 4 strand polyrene 800x188
Break Load Table
Diameter (mm) Reel Size (m) kg / Reel Break Load (kg)
8 220 9.3 1400
10 220 14.3 2100
12 220 20.6 3000
14 220 28 4100
16 220 36.5 5200
18 220 46 6600
20 220 57 8100
22 220 69 9500
24 220 82 11400
26 220 97 13200
28 220 112 15000
30 220 129 17000
32 220 146 19000
36 220 184 23560
38 220 206 26000
40 220 228 28500
42 220 252 33075
44 220 276 36300
46 220 302 39670

8 Strand Custom

  • Range: 32 – 100mm
  • Reel Size: 220m
  • Colours: White, Silver, Turquoise, Brick. More Colors available on request
  • Construction: 8 Strand Braid
  • Features: Excellent abrasion resistance, UV resistant, Strength not affected by Water, does not shrink, Sinking rope
  • Applications: Mooring lines, Anchor warps, Towing lines, Frame net ropes, Foot Ropes, Head line
POLYRENE 8 strand polyrene 800x188
POLYRENE 8 strand polyrene 800x188
Break Load Table
Diameter (mm) Reel Size (m) kg / Reel Break Load (kg)
32 220 146 19000
36 220 184 23560
38 220 206 26000
40 220 228 28500
44 220 276 34000
48 220 330 40000
50 220 357 43100
56 220 512 53200
60 220 582 60000
64 220 660 68400
68 220 738 76000
72 220 825 85000
76 220 915 95000
80 220 961 104000
82 220 1006 109000
84 220 1104 114000
88 220 1210 123000
92 220 1460 130000
96 220 1590 142000
100 220 1725 153000

12 Strand Custom

  • Range: 8 – 60mm
  • Reel Size: 220m
  • Colours: White, Silver, Turquoise, Brick. More Colors available on request
  • Construction: 8 Strand Braid
  • Features: Excellent abrasion resistance, UV resistant, Strength not affected by Water, does not shrink, Sinking rope
  • Applications: Mooring lines, Anchor warps, Towing lines, Frame net ropes, Foot Ropes, Head line
POLYRENE 12 strand polyrene 800x188
POLYRENE 12 strand polyrene 800x188
Break Load Table
Diameter (mm) Reel Size (m) kg / Reel Break Load (kg)
8 220 9.3 1540
10 220 14.3 2310
12 220 20.6 3300
14 220 28 4510
16 220 36.5 5720
18 220 46 7260
20 220 57 8910
22 220 69 10450
24 220 82 12540
26 220 97 14520
28 220 112 16500
30 220 129 18700
32 220 146 20900
36 220 184 25916
38 220 206 28600
40 220 228 31350
44 220 276 37400
48 220 330 44000
50 220 357 47410
56 220 448 58520
60 220 512 66000
